| Tube Forming Machine - Tube Tapering Machine |
| MODELS |
TS02-38 |
TS02-50 |
TS02-50C |
TS02-80 |
TS02-80B |
TS02-1500 |
| SPECIFICATIONS |
|
|
|
|
|
|
| OD (inch) |
Ø1/2"~1 1/2" |
Ø5/8~2" |
Ø5/8~2" |
Ø1"~3" |
Ø1"~3" |
Ø2 1/2"~6" |
| Thickness (m/m) |
0.8~1.2 |
0.8~1.6 |
0.8~1.6 |
1.0 ~ 2.0 |
1.0 ~ 2.0 |
2.0 ~ 3.6 |
| Speed (sec/p) |
10 ~ 18 |
12 ~ 20 |
12 ~ 70 |
25 ~ 60 |
25 ~ 80 |
45 ~ 120 |
|
Mold Length
(4pcs x m/m)
|
300 |
300 |
1000 |
400 |
700 |
500 |
| Motor (HP) |
7 1/4 |
10 1/4 |
20 1/2 |
20 1/2 |
25 1/2 |
30 1/2 |
| Machine dimension(mm) |
1200X1050
X1600
|
1200X1200
X1800
|
2000X1400
X1900
|
1400X1400
X1900
|
1800X1500
X1900
|
1900X1750
X1900
|
| N.W. (kgs) |
2200 |
2800 |
4500 |
4500 |
5200 |
8000 |

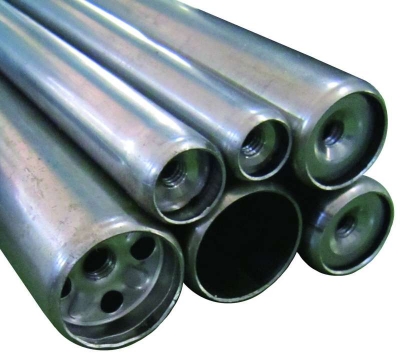

La maquina selladora de tubos esta diseñada para sellar los extremos de los tubos en forma plana o redondeada, el angulo puede ser ajustado facilmante, tambien puede sellada con orificio o sin el. Para detalles contactenos.
