Tube Forming Machine - Sealing Machine
(Three process module flat top type)
|
| MODELS |
TS03-21025 |
| SPECIFICATIONS |
|
| OD of Tube |
10 ~ 25mm |
| Thickness of Tube |
0.8mm~1.2mm |
| Length of Tube |
Unlimited |
| Speed of Sealing Tube |
5 seconds min |
| Motor (HP) |
5 HP |
| Machine dimension(mm) |
1630 x 790 x 1450 |
| N.W./G.W. (kgs) |
630 / 710 |
| Remarks: |
Tube diam. and thickness must match well. |
|
Tube Forming Machine - Sealing Machine
(Three process module arc top type)
|
| |
|
| MODELS |
TS03-31040 |
| |
|
| SPECIFICATIONS |
|
| OD of Tube |
10 ~ 40mm |
| Thickness of Tube |
0.8mm~2.0mm |
| Length of Tube |
Unlimited |
| Speed of Sealing Tube |
8 seconds min |
| Motor (HP) |
11 HP |
| Machine dimension(mm) |
2285 x 825 x 1185 |
| N.W./G.W. (kgs) |
910 / 1030 |
| Remarks: |
Tube diam. and thickness must match well. |

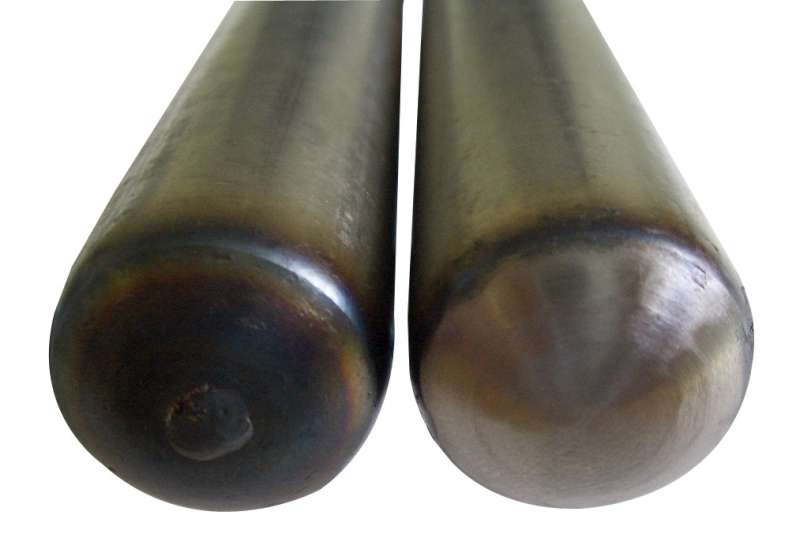

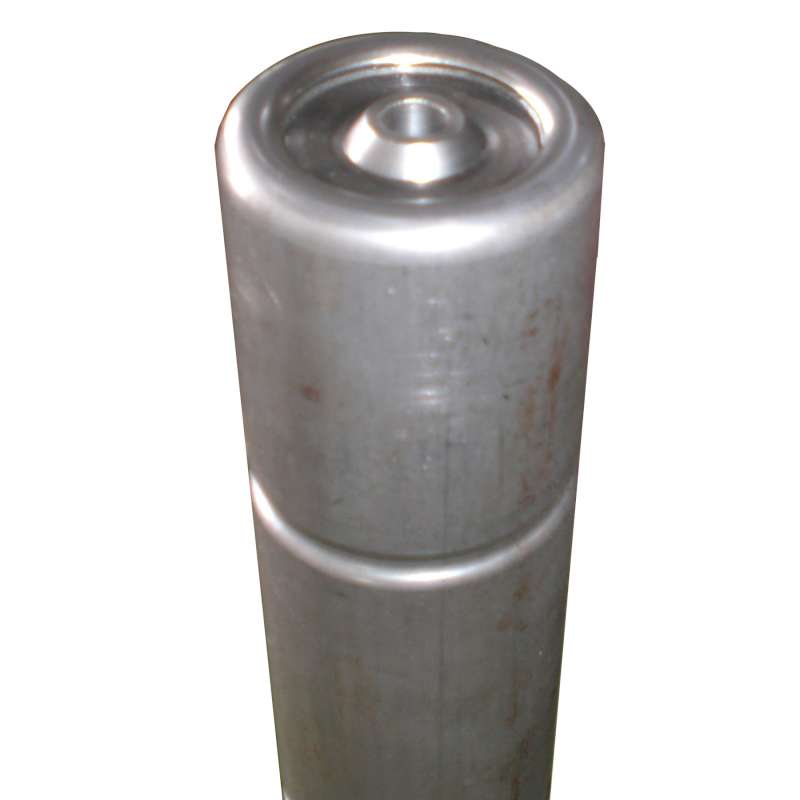

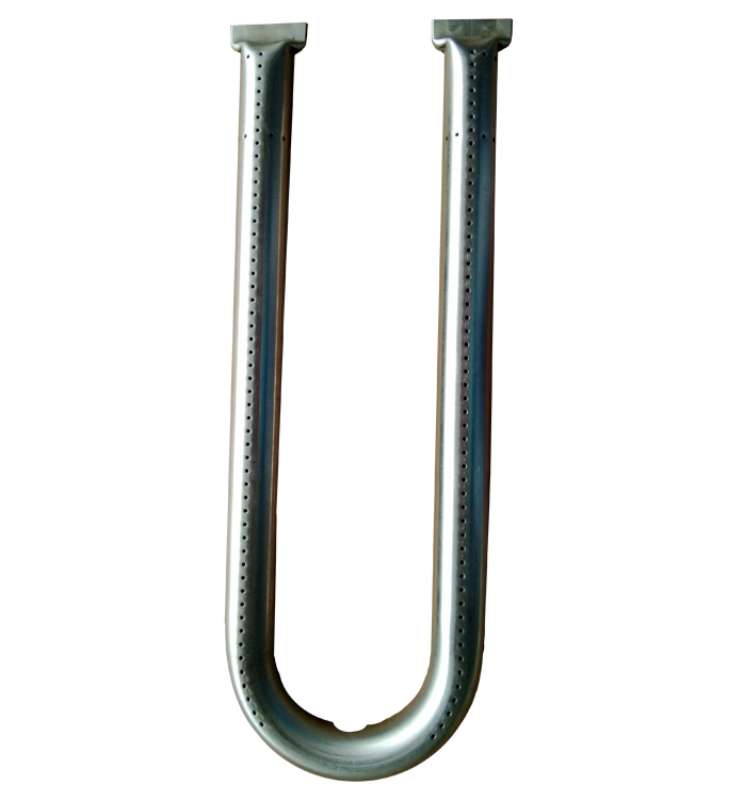

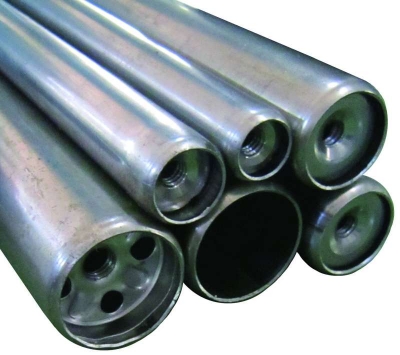

La maquina selladora de tubos esta diseñada para sellar los extremos de los tubos en forma plana o redondeada, el angulo puede ser ajustado facilmante, tambien puede sellada con orificio o sin el. Para detalles contactenos.
